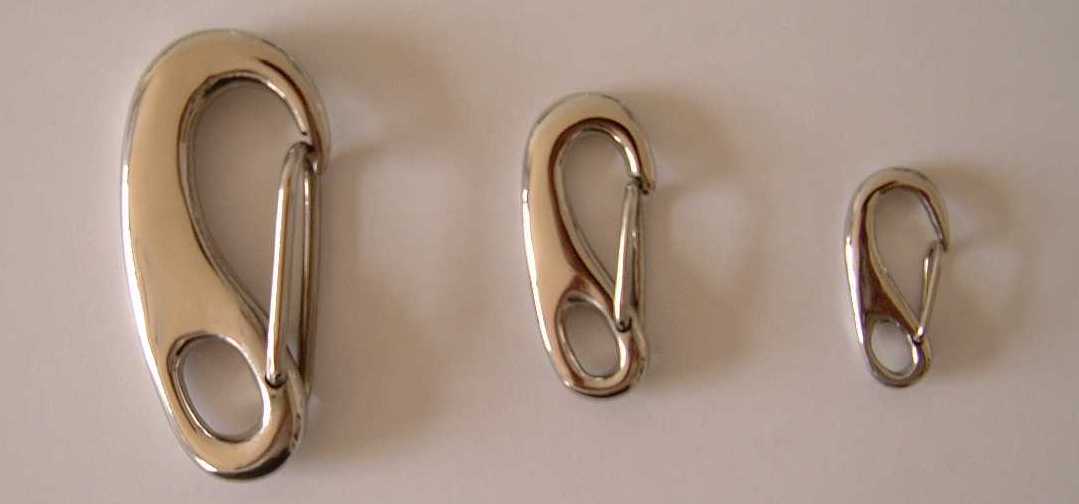

STAINLESS
STEEL SPRING GATE SNAPS
|
| Art.No. |
size
|
A |
B |
L |
Break
Loading |
Weight/pc
|
| 86001 |
50mm |
6 |
8 |
50 |
300kgs |
0.020kgs |
| 86002 |
70mm |
10 |
12 |
70 |
700kgs |
0.050kgs |
| 86003 |
100mm |
13 |
16 |
100 |
1500kgs |
0.150kgs |
|

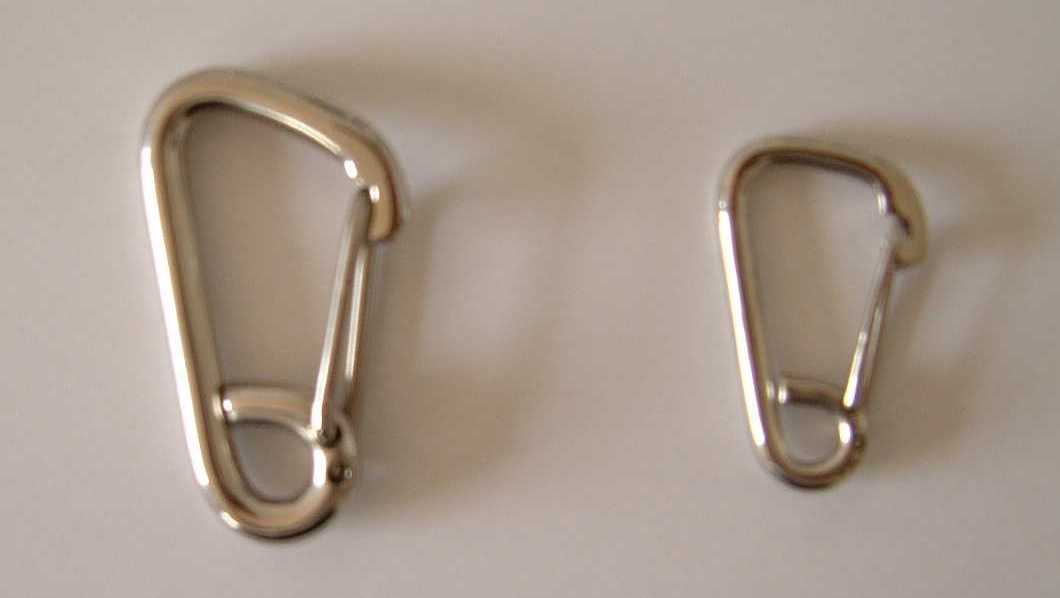

STAINLESS
STEEL SPRING HOOKS
|
| Art.No. |
Size
|
Dia.mm |
Length
mm |
Max.
Open mm |
Break
Loading |
| 85006 |
6mm |
6 |
60 |
10 |
600kgs |
| 85008 |
8mm |
8 |
80 |
15 |
1600kgs |
| 85010 |
10mm |
10 |
100 |
20 |
2500kgs |
| 85012 |
12mm |
12 |
120 |
28 |
3800kgs |

|

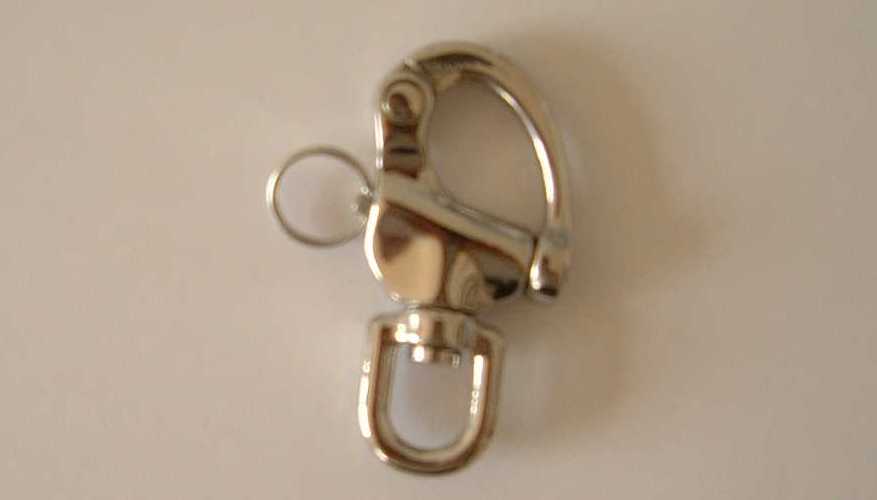

STAINLESS
STEEL SWIVLE SNAP SHACKLES
|
| Art.No. |
Size
|
Length
mm |
A
mm |
B mm |
Weight
/pc |
| 82912 |
70mm |
70 |
12 |
12 |
0.060kgs |
| 82916 |
87mm |
87 |
16 |
16 |
0.125kgs |
| 82922 |
128mm |
128 |
22 |
22 |
0.315kgs |
|
STAINLESS STEEL FIXED
SNAP SHACKLES
|
| Art.No. |
Size
|
Length
mm |
A mm |
B mm |
Weight
/pc |
| 82812 |
52mm |
52 |
12 |
9 |
0.054kgs |
| 82816 |
66mm |
66 |
16 |
12 |
0.100kgs |
| 82822 |
96mm |
96 |
22 |
16 |
0.325kgs |

|

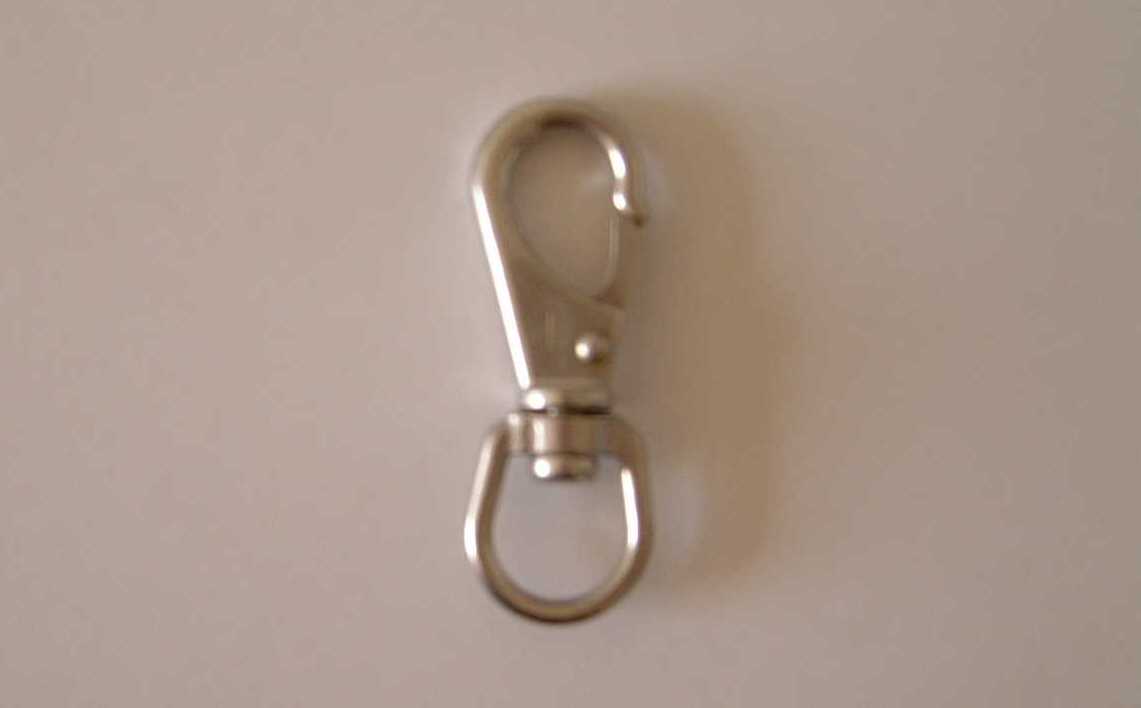

STAINLESS
STEEL SWIVEL EYE SNAPS
|
| Art.No. |
Size
|
A
(Length)mm |
B
mm |
C mm |
D
mm |
| 82704 |
4mm |
65 |
13 |
10 |
4 |
| 82705 |
5mm |
85 |
16 |
11 |
5 |
| 82706 |
6mm |
100 |
19 |
12 |
6 |
| 82707 |
7mm |
120 |
22 |
13 |
7 |
|

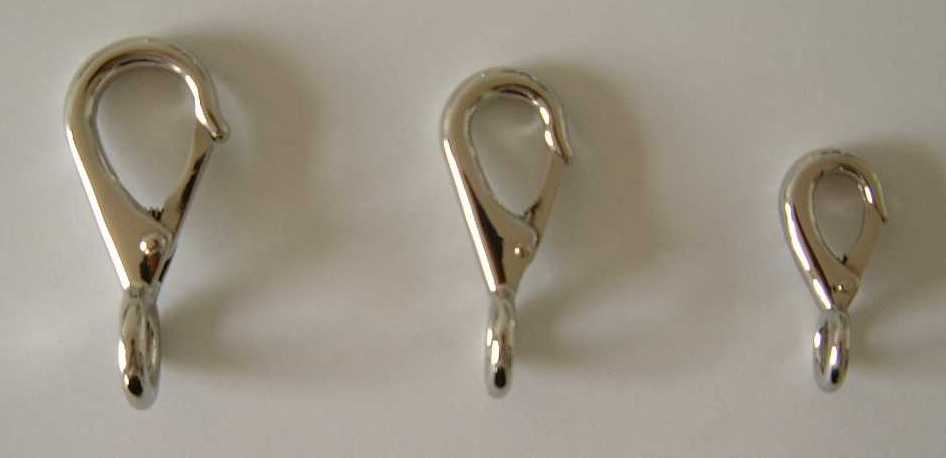

STAINLESS
STEEL FIXED EYE SNAPS
|
| Art.
No. |
Size
|
Length
mm |
Weight/pc |
| 82700 |
00 |
55 |
0.027kgs |
| 82701 |
01 |
71 |
0.045kgs |
| 82702 |
02 |
80 |
0.063kgs |
| 82703 |
03 |
95 |
0.127kgs |
|
