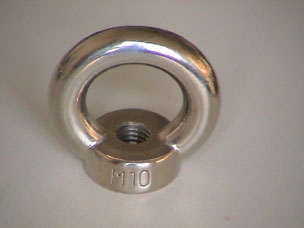

Stainless steel Eye Nuts DIN
582
| Art.No. |
Thread Dia. |
External Dia. |
Internal Dia. |
Height |
| 79006 |
M6 |
28mm |
16mm |
31mm |
| 79008 |
M8 |
36mm |
20mm |
36mm |
| 79010 |
M10 |
45mm |
25mm |
45mm |
| 79012 |
M12 |
54mm |
30mm |
53mm |
| 79016 |
M16 |
63mm |
35mm |
62mm |
| 79020 |
M20 |
72mm |
40mm |
71mm |
| 79024 |
M24 |
90mm |
50mm |
90mm |
-
-
-

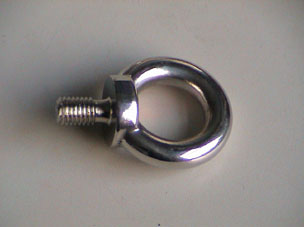

 Stainless steel Eye Bolts DIN
580
| Art.No. |
Thread Dia. |
External Dia. |
Thread Length |
Internal Dia. |
Height |
| 78006 |
M6 |
28mm |
12mm |
16mm |
31mm |
| 78008 |
M8 |
36mm |
13mm |
20mm |
36mm |
| 78010 |
M10 |
45mm |
17mm |
25mm |
45mm |
| 78012 |
M12 |
54mm |
20.5mm |
30mm |
53mm |
| 78016 |
M16 |
63mm |
27mm |
35mm |
62mm |
| 78020 |
M20 |
72mm |
30mm |
40mm |
71mm |
| 78024 |
M24 |
90mm |
36mm |
50mm |
90mm |
-
-

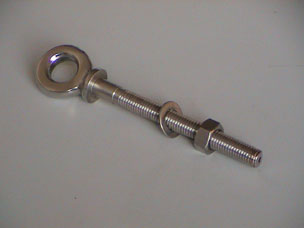

Stainless steel Forged Eye
Bolts
| Art.No. |
Size |
| 77001 |
6x40mm |
| 77002 |
6x60mm |
| 77003 |
6x80mm |
| 77004 |
8x60mm |
| 77005 |
8x80mm |
| 77006 |
8x100mm |
| 77007 |
10x100mm |
| 77008 |
12x120mm |

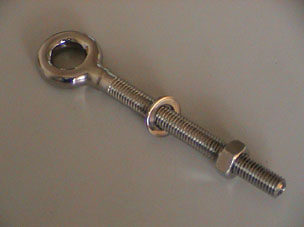

Stainless steel Bolts
with welded eye
| Art.No. |
Size |
| 77201 |
6x40mm |
| 77202 |
6x80mm |
| 77203 |
6x100mm |
| 77204 |
8x110mm |
| 77205 |
8x130mm |
| 77206 |
10x130mm |
| 77207 |
10x150mm |

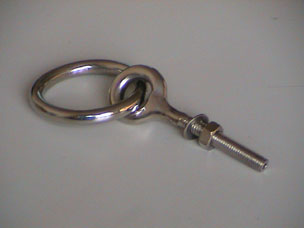

Stainless steel Ring
Bolts
| Art.No. |
Size |
| 77106 |
6x60mm |
| 77108 |
8x80mm |
| 77110 |
10x100mm |
| 77112 |
12x120mm |

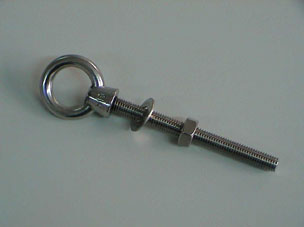

Stainless steel Eye
Bolts
| Art.No. |
Size |
| 77640 |
6x40mm |
| 77660 |
6x60mm |
| 77680 |
6x80mm |
| 77880 |
8x80mm |
| 77810 |
8x100mm |
| 77101 |
10x100mm |
| 77121 |
12x120mm |

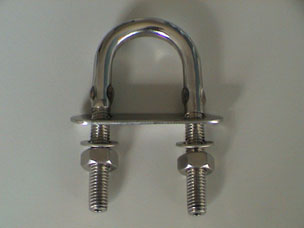

Stainless steel U Bolts
with two nuts and one plate
| Art.No. |
Size |
| 72001 |
4x60mm |
| 72002 |
5x60mm |
| 72003 |
6x60mm |
| 72004 |
6x70mm |
| 72005 |
6x90mm |
| 72006 |
8x64mm |
| 72007 |
8x80mm |
| 72008 |
8x100 |
| 72009 |
10x90mm |
| 72010 |
10x130mm |
| 72011 |
12x150mm |

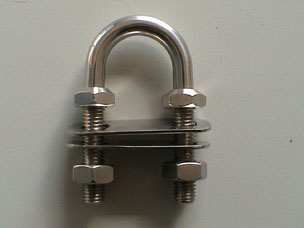

Stainless steel U Bolts
with four nuts and two plate
| Art.No. |
Size |
| 72301 |
4x60mm |
| 72302 |
5x60mm |
| 72303 |
6x60mm |
| 72304 |
6x70mm |
| 72305 |
6x90mm |
| 72306 |
8x64mm |
| 72307 |
8x80mm |
| 72308 |
8x100 |
| 72309 |
10x90mm |
| 72310 |
10x130mm |
| 72311 |
12x150mm |
|
