FRANK MARINE PTY LTD

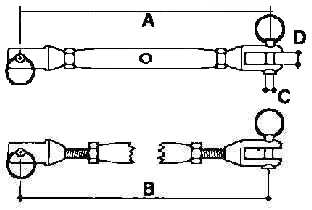

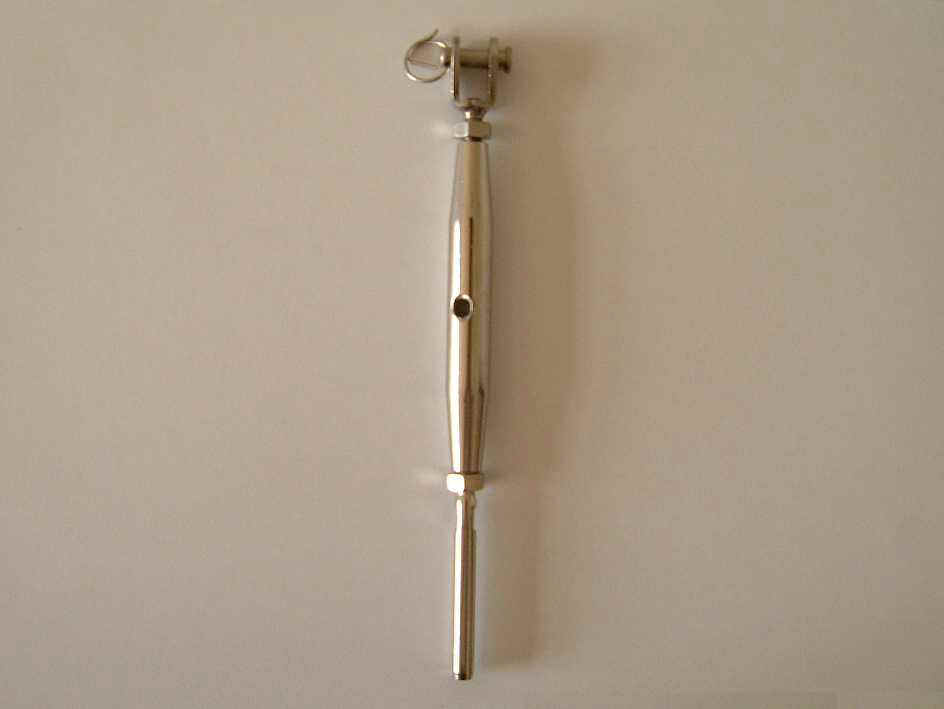

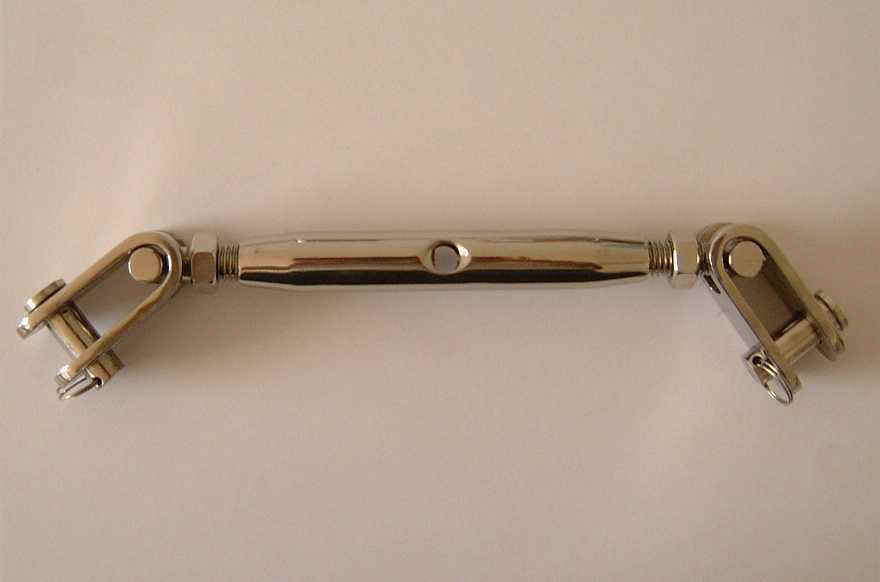

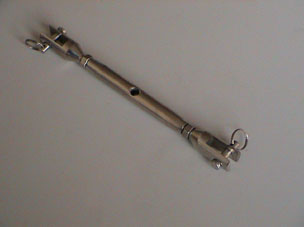

CLOSED BODY RIGGING SCREW
Art.No.	size	A(mm)	B(mm)	C(mm)	D(mm)	weight/pc	pcs/carton
80005 80006 80008 80010 80012 80014 80016 80020	5mm 6mm 8mm 10mm 12mm 14mm 16mm 20mm	120 135 160 180 225 260 300 385	175 190 230 260 325 385 440 580	5 6 6 8 8.5 10 12 14	5 6 8 10 12 14 16 20	0.075kgs 0.08kgs 0.17kgs 0.26kgs 0.44kgs 0.80kgs 1.08kgs 2.00kgs	350pcs 300pcs 200pcs 100pcs 50pcs 30pcs 25pcs 15pcs

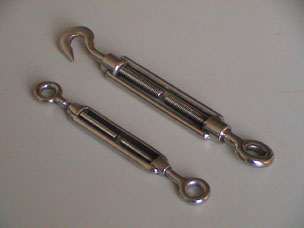

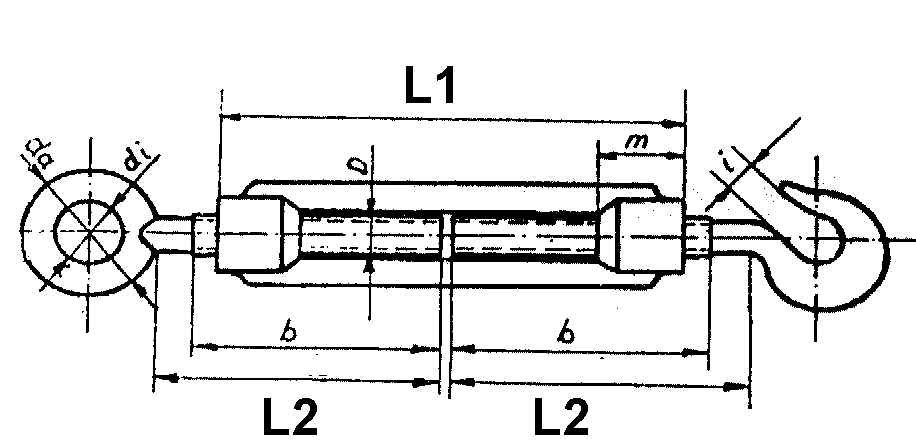

TURNBUCKLE DIN 1480 WITH HOOK AND EYE
Art.No.	Dimension D	Permissible Load		Weight	L1	m	L2	b	di	da	i
	mm	kp	N	kg/100pcs	mm	mm	mm	mm	mm	mm	mm
81006	6	230	2250	7.8	110	10	60	53	10	20	4.5
81008	8	418	4100	14.8	110	14	60	55	12	26	6.5
81010	10	663	6500	29.4	125	20	65	60	14	30.5	8
81012	12	948	9300	36.3	125	21	75	70	18	37.5	10.5
81016	16	1804	17700	91	170	27	100	90	22	48	13
81020	20	2752	27000	156	200	34	115	100	25	51	20
81024	24	3996	39200	325	255	39	140	130	28	66	27
81030	30	6371	62500	415	255	45	145	130	35	83	31
81032	32	6585	64600	595	295	55	160	150	36.5	88	33
81036	36	9276	91000	745	295	55	160	150	44	104	40
81038	38	9572	93900	1076	330	63	185	170	42	104	39


　

　
