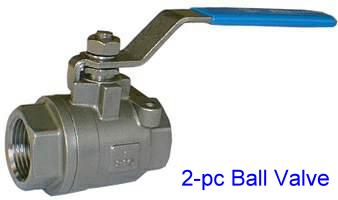

Stainless Steel Ball Valves and Pipe Fittings


Red.Tee



SIZE 1/4*1/8 3/8*1/4 11/4*3/4 11/4*1 11/2*1 11/2*11/4 2*11/4 2*11/2 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2 1*3/4
A 22 20 38 40 41 45 48 52 24 26 28 29 32 34
B 20 22 40 42 45 48 54 55 24 25 28 30 33 35

Tee



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
A 19 19 22 28 30 36 44 48 55 67 77 96

Cross



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
A 19 19 22 28 30 36 44 48 55 67 77 96

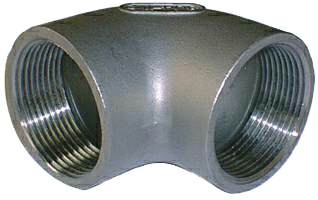

 Elbow 90



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
A 19 19 22 28 30 36 44 48 55 67 77 96

Elbow 45



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
C 17 19 21 22 25 28 33 35 40 54 58 71

Socket Banded



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
O 16 20 23 28 33 42 51 57 72 88 102 128
Q 21 25 28 34 39 43 48 55 58 68 74 85

Coupling O.D.M



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
S 15 19 22 27 34 41 51 56 70 87 100 126
R 21 25 28 35 40 45 50 50 58 68 74 85

Hex Nipple



E 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
K 32 35 36 42 47 49 53 57 63 77 81 86
I 13 16 20 24 30 36 46 50 66 79 93 118

Hex Plug



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
I 13 16 20 24 30 38 46 50 62 79 93 118
J 15 19 20 23 25 27 30 33 37 46 48 51

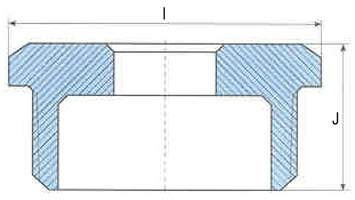

Hex Bushing



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
I 13 16 20 24 30 38 46 50 62 79 93 118
J 15 19 20 23 25 27 30 33 37 46 48 51

Square Plug



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
G 7 9 11 14 16 21 24 29 33 38 43 47
F 16 19 21 24 27 31 35 36 41 48 53 55

Round Cap



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
O 17 19 24 28 33 42 51 57 70 87 100 128
N 14 15 17 19 23 26 28 30 34 38 43 49

Union



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
D 33 33 36 41 45 53 59 64 68 77 83 97
E 29 29 34 39 47 58 67 76 90 106 123 153

Red. Socket Banded



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
O 　 19 24 28 33 42 51 57 70 87 100 128
N 　 26 28 35 39 43 48 52 58 66 70 85

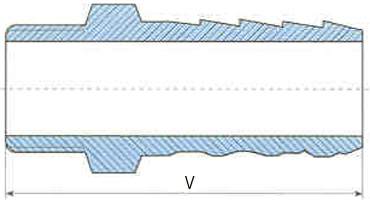

Hose Nipple



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
V 　 47 51 56 67 71 75 90 99 108 113 119

Street Elbow 90



SIZE 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2 2 21/2 3 4
A 19 19 23 28 30 36 44 48 55 67 77 96
B 25 29 35 40 48 53 65 70 77 93 105 129
