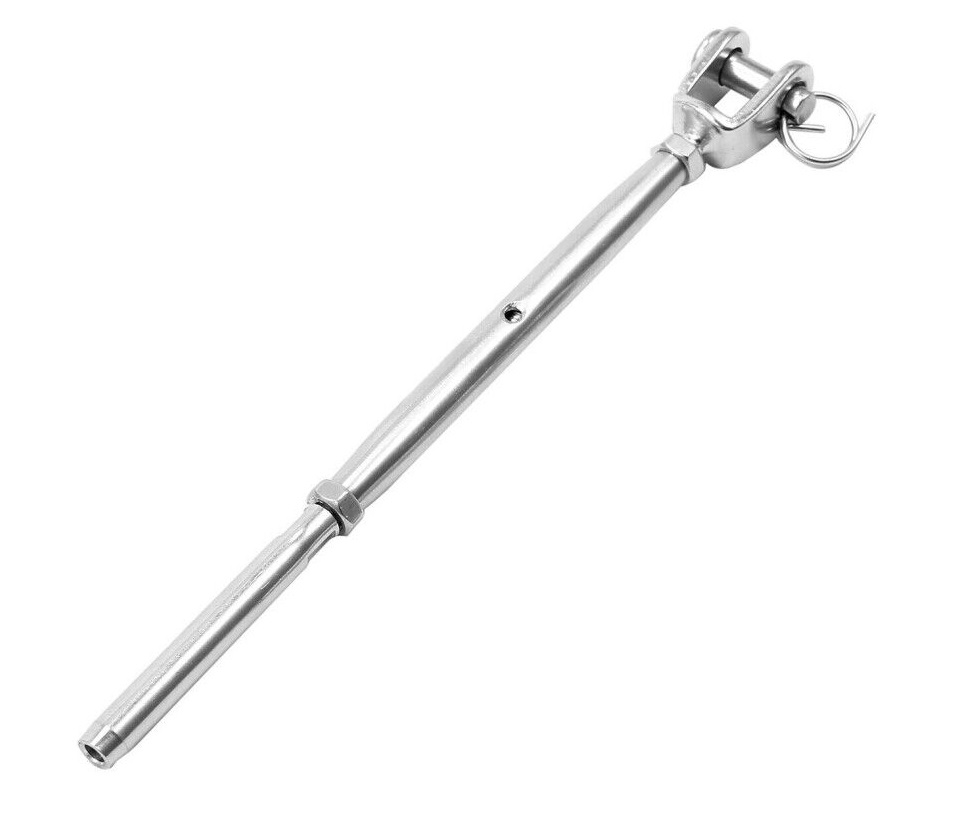

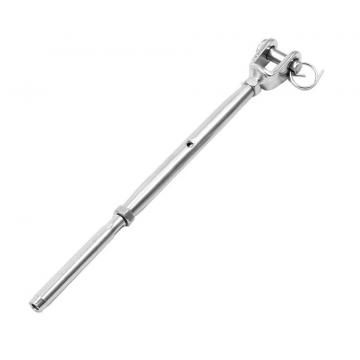

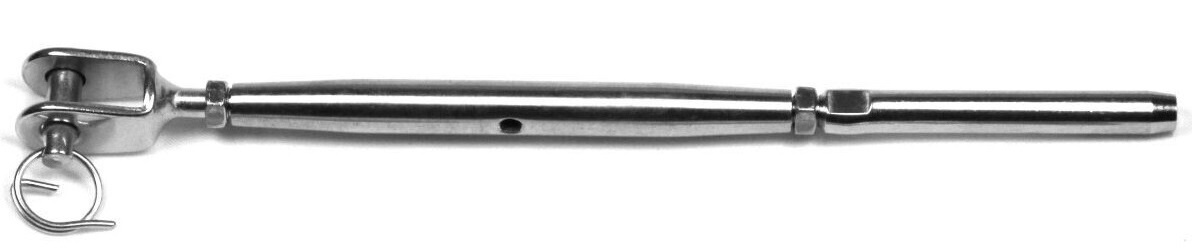

Jaw/Swage Bottlescrew

SOLD: 67

评论: 0

- made in stainless steel 316

- with jaw/stud terminal

- for wire sizes: 2.0mm(3/32"), 3.2mm(1/8"), 4.0mm(5/32mm), 5mm(3/16")

Remark: the real dimensions are not exact same as showed, the showed dimensioms are approximate, just for reference, are nominal and should be used as guide only.

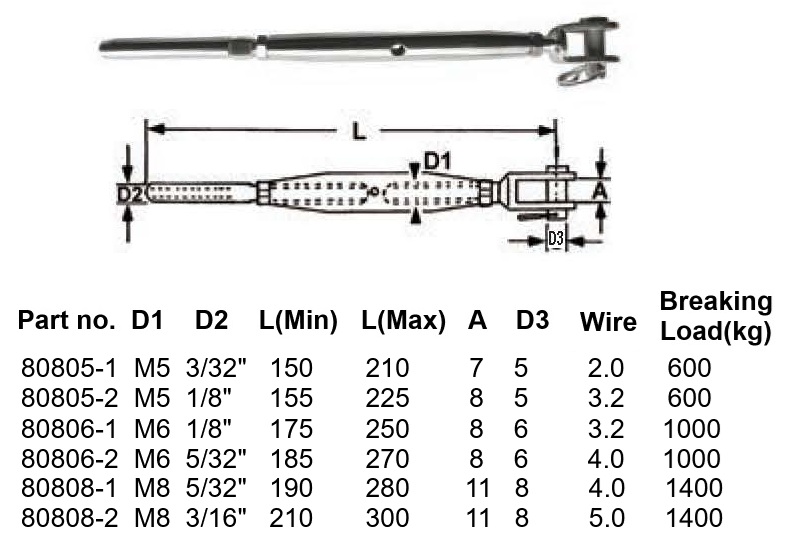

Specifications
Description

Item Name	Jaw/Swage Bottlescrew
Part no.	80805-1 80805-2 80806-1 80806-2 80808-1 80808-2
Size	2.0mm(3/32"), 3.2mm(1/8"), 4.0mm(5/32mm), 5mm(3/16")
Wire Dia.(mm)	2mm, 3.2mm, 4mm, 5mm
Material	made in stainless steel 316
Other	jaw/stud terminal

- made in stainless steel 316

- with jaw/stud terminal

- for wire sizes: 2.0mm(3/32"), 3.2mm(1/8"), 4.0mm(5/32mm), 5mm(3/16")

Remark: the real dimensions are not exact same as showed, the showed dimensioms are approximate, just for reference, are nominal and should be used as guide only.
